The main circuit
Here is the diagram of the main circuit.
This main cicuit is creating a pulsating electric current because of the spark gap, the capacitor, the resistance, the diode and the induced current from the input power trasnformer (not seen in this part of the circuit).
The spark gap
In the version v3.2 the spak gap was from two rods of tungsten. ( air gap 0.9 mm)
The Grounding
The input power
(as a pdf file it can be downloaded from here https://dl.dropboxusercontent.com/u/107295772/ScalarWaveTechnology-Experimental-Kit2003.pdf )
2) The next set of instructions is taken mainly from the experimental work of the laboratory of Jean Louis Naudin. (http://jnaudin.free.fr/kapagen/index.htm) and in particular version 3.2 and 3.3.
The suggested design and construction below is quite different I think from the original design in the patent of T. Kapanadze which can be found here
http://v3.espacenet.com/publicationDetails/originalDocument?CC=WO&NR=2008103130A1&KC=A1&FT=D&date=20080828&DB=EPODOC&locale=en_EP
We must notice in advance, that the present realization v3.3 of the Kapanadze device, by Jean Louis Naudin, is so that the device fails , in the sense, that it does not give more power, that the given input power. But this is not what Kapanadze did. I only give the details of v3.3 realization by J.L. Naudin, because I know of no other very detailed data of realization that did succeed (except perhaps the next video by Andre Fabrice , http://www.youtube.com/watch?v=B6hVasVR7AI and more material here http://pesn.com/2013/04/13/9602295_Demos_by_Fabrice-Andre_Refuge7/ ) . Nevertheless, as J.L. Naudin has published in the same page, of his site, some of the experimenters claim that they did get more output power than the input power. E.g. the exprimenter Robert below, ( # 10 - June 21, 2010), did succeed, to have more power at the output (1800W) relative to the input power (800W). But this only after persisting experimentation, after changing the diode with another, and his coil too has three parts of different number of turns (22-84-6) that the current version v3.3. It seems also that the experimenter Romerouk (# 3 - June 10, 2010 - Kapagen replication v1.1 and 1.2 ) did succeed to have more output power that input power.
Another important remark is that the instructions of J.L. Naudin , in his site do not specify explicitly the clockwise or counterclockwise winding of the three or two parts of the coils, and the placing of them on the tube. But even if he did we know that he failed to get more power as output than as input. The next video is from an amateur who does carefully specifies, the directions of the turns of the three coils and gives also a slightly different circuit diagram.
http://www.youtube.com/watch?v=hQVfW1yUqTo
Another important remark is that the instructions of J.L. Naudin , in his site do not specify explicitly the clockwise or counterclockwise winding of the three or two parts of the coils, and the placing of them on the tube. But even if he did we know that he failed to get more power as output than as input. The next video is from an amateur who does carefully specifies, the directions of the turns of the three coils and gives also a slightly different circuit diagram.
http://www.youtube.com/watch?v=hQVfW1yUqTo
In all videos that I am aware that have successfully realized a Kapagen-like device, where they get more power as output than as input, do utilize three coils in the cylinder configuration of coils and not only two. The circuit connections of the last video above, are claimed by the amateur that are the only that make it work, and not have the coils cancel out the their effects.
The circuit of this last amateur is shown also here
http://img600.imageshack.us/img600/1791/imageknr.jpg
We may notice that according to the orientations clockwise/counterclockwise on the geometry of the three coils, and after the circuit connections that the previous amateur proposes with a grounding connected in between the three coils, it seems as if he is having the next configuration: a transformer, that in its primary part (coils 22 turns/84 turns) it is given a high voltage non-DC current, and so that the secondary part (coil 6 or 9 turns) gives the output current with extra energy, and both primary and secondary have a common pole in the grounding. The above configuration is so that there are two non-equal magnetic fields from the coils with opposite (repelling) position of their north and south poles. Such a configuration of magnetic fields is almost identical the the magnetic fields of the two wheels of the old overunity device of testatika (in the community of Methernitha). (See post 1)
So my suggestion is , to start with the details of J.L. Naudin that we know that he failed, utilize three coils and not two coils and then experiment with different circuit connections as the above amateur.
The Kapagen-related method by Andre Fabrice as in
deviates much more that the details of J.L. Naudin.
All informations and diagrams are published freely (freeware) and are intended for a private use and a non commercial use.
Warning!
Due to the presence of High Voltage and the High Power output of the Kapagen, users of this document should be very carefull and experienced in High-Voltage electronics to try anything out ! If you do it, the risk of any result is just yours. I take no responsibility of anything that might happen.
Testing such a device needs a lot of caution and the use of safety procedures, the experimenter must be very skilled in the use of High Voltage at High Power...
The main circuit
The double coil
The diode HV 05-12 F04 (Later constructors have experimented with different diodes, so that the diode remains cool)
The spark gap ( air gap 0.9 mm) (Both rods of the spark gap from tungsten. Later constructors have put the one rod of the spark gap from copper and the other from carbon, which makes the spark gap silent during discharges, and reduces input power by 55 watts)
The capacitor HV 1μF 2000V AC
The resistance 10 M Ohms Internal (1 W )
In the above circuit circulates about 2000 Volts AC.
Here is the diagram of the main circuit.
This main cicuit is creating a pulsating electric current because of the spark gap, the capacitor, the resistance, the diode and the induced current from the input power trasnformer (not seen in this part of the circuit).
The beneficial energy job is done from the double coil that you see in the diagram. It is not a transformer, and to many may seem like a grounded antenna.
Some conjectural theory:
What it does, according to my understanding is to create an asymmetric (conical) twistor in the electromagnetic field or electromagnetised aether (=charged and in motion aether) which subtracts heat energy from aether and converts it to kinetic, in other words electric current. This is similar to the air-twisters (tornados) that as the air is moving in their conical section, is expanding, the temperature drops, air-heat is converted to kinetic energy and the twister motion is preserved. In aether the aether temperature is proportional to the scalar gravitational potential φ, and thus we may say that the energy is extracted from the potential energy of the gravitational field. Of course according to our standard knowledge of the gravitational field this seems impossible, but on the other hand it seems that we know only 4/10 or 6/10 of what fully is the gravitational field. See e.g.
http://thenewuniversalattraction.blogspot.gr/
or
http://users.softlab.ece.ntua.gr/~kyritsis/PapersinPhysics/Lancast8_suspended.pdf
The double coil
How the double coil is made:
A PVC tube (Cylinder) for the coils, of diameter 5 cm , length 32 cm
2 sockets at the two circular ends of the tube to connect the wires from the rest of the circuit.
The tube has a long coil on its surface of 108 turns, that occupies about 23 cm length of the tube. The wire for this coil is not more than 30 m, 1.5 square mm (mm^2) cross-section, insulated.
It has also a short coil of only 6 turns, of 2.5 square mm (mm^2) insulated wire.
The short coil of 6 turns is kept in a small distance (not in contact) from the long coil of the many turns, as in the pictures, by plastic rods or tubes and glue.
The coils are of air core.
Inside the PVC tube of the coils, there is a copper tube of diameter 12 mm, and length 40 cm , and inside it a copper rod of diameter 8 mm, and length 40 cm. Both are electrically connected, but it seems better if they are also firmly fitted between them. These two are grounded according to the circuit diagram.
Here is a diagram of the long coil
And a picture of the double coil what is made
The spark gap
In the version v3.2 the spak gap was from two rods of tungsten. ( air gap 0.9 mm)
But in version v.3.3 it was improved to be the one rod of the spark gap from copper and the other from carbon, which makes the spark gap silent during discharges, and reduces input power by 55 watts according to one of the friends that reprlicated it.
Here are some photos
The Grounding
The input power
A microwave oven transformer (MOT) of 800 watts.
DCP-M Y 5591 MX Class 200
2400 volts 1710 VA 3.28 V AC (the 3.28 v coil is not used)
The input current is 220 volts AC, 50 Hz
The output of the tranformer is AC 2000 volts

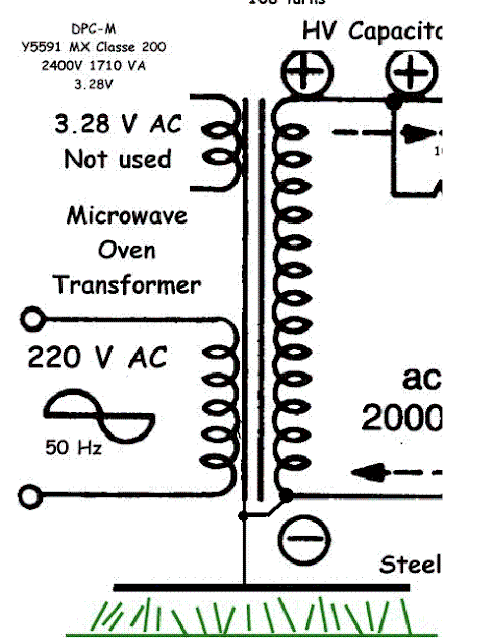

Here is a diagram of the input power
Here is a diagram of the input power
Here is the full digram
The device is tested here with
Off course any necessary wires, sockets , groundings, box or wooden table etc
The measurements of the input-output power by J-L. Naudin are here
The measurements of the relation of luminosity of the lamps with the power is here
Other things that must me taken care, according to 10-15 other friends who reproduced versions 3.2,, 3.3 or earlier versions are
1) Monitor the temperature of the various parts,like input transformer MOT, diode, and lamps, and substitute them with different specifications to keep them cool
2) Be sure to have the spark gap silent
3) Close all house appliances like TV, radio etc to prevent them from being burned.
4) Some suggest high resistance test charges instead of lamps.
5) Be sure to have the grounding with watered soil so as to make it more efficient.
A video
http://www.youtube.com/watch?feature=player_embedded&v=aOvuQweJsV8
Overall photo of the power and luminocity measurements
Here are some reports of other people that have replicated the device. Notice that some of them, have replicated the earlier versions , which had a third coil on the tube.
(To see all these reports together with their photos go to the link
http://jnaudin.free.fr/kapagen/replications.htm#15 )
More videos and constructors of Kapanadze
http://www.youtube.com/watch?v=B6hVasVR7AI http://pesn.com/2013/04/13/9602295_Demos_by_Fabrice-Andre_Refuge7/
Here are more videos also outside the instructions of the J-L Naudin laboratory.
http://www.youtube.com/watch?v=Z-QvHSyHOuQ
http://www.youtube.com/watch?v=atlnVNy0IDE
http://www.youtube.com/watch?v=atlnVNy0IDE&feature=related
The device is tested here with
5 halogen lamps 150 watts 220 volts.
(with surge arrestors each lamp EPCOS 230 volts, to protect them from burning their tungsten filaments)
Here is a diagram of the output
Here is a diagram of the output
Here is the the list of the parts mentioned above
Central Circuit
The double coil
The diode HV 05-12 F04 (Later constructors have experimented with different diodes, so that the diode remains cool)
The spark gap ( air gap 0.9 mm) (Both rods of the spark gap from tungsten. Later constructors have put the one rod of the spark gap from copper and the other from carbon, which makes the spark gap silent during discharges, and reduces input power by 55 watts)
The capacitor HV 1μF 2000V AC
The resistance 10 M Ohms Internal (1 W )
In the above circuit circulates about 2000 Volts AC.
It seems, according to a video below, that the frequency of the circuit is at the range of
1-1.2 MHerz
1-1.2 MHerz
The Double coil
A PVC tube (Cylinder) for the coils, of diameter 5 cm , length 32 cm
2 sockets at the two circular ends of the tube to connect the wires from the rest of the circuit.
The tube has a long coil on its surface of 108 turns, that occupies about 23 cm length of the tube. The wire for this coil is not more than 30 m, 1.5 square mm (mm^2) cross-section, insulated.
It has also a short coil of only 6 turns, of 2.5 square mm (mm^2) insulated wire.
The short coil of 6 turns is kept in a small distance (not in contact) from the long coil of the many turns, as in the pictures, by plastic rods or tubes and glue.
The coils are of air core.
Inside the PVC tube of the coils, there is a copper tube of diameter 12 mm, and length 40 cm , and inside it a copper rod of diameter 8 mm, and length 40 cm. Both are electrically connected, but it seems better if they are also firmly fitted between them. These two are grounded according to the circuit diagram.
My impression is that as the current is propagating in the long-fine and short-coarse coil, the turning orientation is both counterclockwise or both clockwise, but when putting the two coils geometrically on the cylinder, it would be of opposite turning orientation. Similarly for three coils as in the earlier versions, along the current path, my impression is that it is clockwise (22 turns)/counterclockwise (84 turns) /counterclockwise (6 turns). The next video
http://www.youtube.com/watch?v=hQVfW1yUqTo shows also
that the third grounding of the lamps is connected in between the 84 turns coil and 6 turns coil, something that J.L. Naudin does not have in his circuit-diagram of versions 1,2. (http://img600.imageshack.us/img600/1791/imageknr.jpg)
The input power
A microwave oven transformer of 800 watts.
DCP-M Y 5591 MX Class 200
2400 volts 1710 VA 3.28 V AC (the 3.28 v coil is not used)
The input current is 220 volts AC, 50 Hz
The output is AC 2000 volts
The output charge
5 halogen lamps 150 watts 220 volts.
(with surge arrestors each lamp EPCOS 230 volts, to protect them from burning thei tungsten filaments)
In the current versionof the device, the 2,000 volts output, is send to the halogen lamps. But if we want to send the output to ordinary devices, then we must use an additional transformer to step down the 2,000 volts to 220 volts of an ordinary home appliance.
In the current versionof the device, the 2,000 volts output, is send to the halogen lamps. But if we want to send the output to ordinary devices, then we must use an additional transformer to step down the 2,000 volts to 220 volts of an ordinary home appliance.
The list parts as mentioned by J.L Naudin is

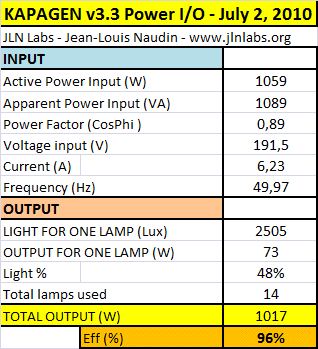

The measurements of the input-output power by J-L. Naudin are here
The measurements of the relation of luminosity of the lamps with the power is here
Other things that must me taken care, according to 10-15 other friends who reproduced versions 3.2,, 3.3 or earlier versions are
1) Monitor the temperature of the various parts,like input transformer MOT, diode, and lamps, and substitute them with different specifications to keep them cool
2) Be sure to have the spark gap silent
3) Close all house appliances like TV, radio etc to prevent them from being burned.
4) Some suggest high resistance test charges instead of lamps.
5) Be sure to have the grounding with watered soil so as to make it more efficient.
A video
http://www.youtube.com/watch?feature=player_embedded&v=aOvuQweJsV8
Overall photo of the power and luminocity measurements
What the say other people that have constructed replications and variations around the world.
Here are some reports of other people that have replicated the device. Notice that some of them, have replicated the earlier versions , which had a third coil on the tube.
(To see all these reports together with their photos go to the link
http://jnaudin.free.fr/kapagen/replications.htm#15 )
